System 7
System 7 Mats are a safe, economical work site solution when you require temporary roads or stable work platforms, even in the most extreme environments. The four, interlocking sides ensure a continuous work surface while the high-performance thermoplastic allows mats to conform to various types of terrain. The interlocking mats can be set up in endless configurations to meet each job’s specific requirements. When put together, they distribute weight evenly across a large surface area, which helps mats stay put throughout your entire project and through all types of weather conditions.
A built-in tread pattern on the surface improves safety and traction for load-bearing vehicles. Made of inert material and impervious to rot, they provide safe access to environmentally sensitive areas with minimum surface and soil disturbance and prevents chances for cross-contamination.
Mats interlock via overlapping joints or, lap joints. In addition, there are 8 slots where the locking pins can be used to connect multiple mats together.
System 7 Features & General Specifications
DESCRIPTION | IMPERIAL | METRIC |
|---|---|---|
Overall Dimensions | 8’ x 14’ x 4.25” | 2,440mm x 4,260mm x 108mm |
Usable Area | 91 ft2 (7’ x 13’) | 8.5 m2 (2.1 m x 4.0 m) |
Weight Per Mat | 1,030 lbs | 467 kg |
Each load can carry up to 46 mats, covering an area of 391 m2, compared to wood mats on a truck.
Locking Pins
Our System 7 pin is built to operate in the harshest environments and packed with enhancements to be more user friendly in the field.
- Interchangeable with competitor pins
- Female Hex to lock/unlock pin
- Eliminated excessive slots on top of pin to reduce fluid and debris blockage
- Pin unlocks from either direction (360)
- Visual lock/unlock indicator
- Enhanced wall slots provide easy access to help remove mud, snow and ice buildup
- Custom color available
- Private label options available
- Mats interlock via overlapping joints or, lap joints. In addition, there are 8 slots where the locking pins can be used to connect multiple mats together.

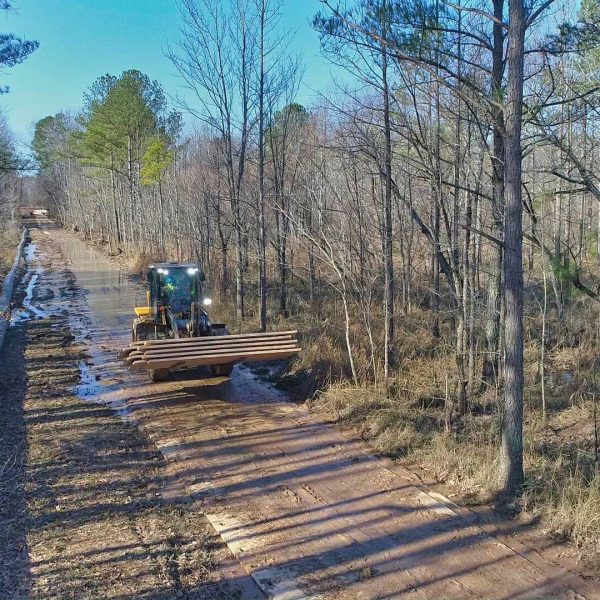

Installation & Removal of The System 7 Mats
When installed correctly, System 7 mats make a safe, uniform surface that can stand up to all the requirements of your project. The lap joints on each mat allow total customization to match your exact needs.
Contact ASL Energy for expert advice at info@ASL.Energy or at (709) 800-1293.
Applications of System 7 Mats:
- Heavy-Duty Access Roads: Ideal for creating stable access roads and bypasses, especially in extreme environments.
- Work Platforms: Provide a stable work surface for various projects, including helipads and worksite surfaces.
- Environmental Protection: Suitable for use in areas where environmental protection is crucial, with options for runoff collection and isolation.
- Roadway Configurations: Can be installed in single-width transverse or double-width longitudinal configurations for roadways, with options for turnouts and passing lanes.
- Site Coverage: Efficiently cover large surface areas with precise alignment, ensuring a secure and locked grid.
- Equipment & Storage Pads: Use in small groups to create storage pads for equipment or special tasks on the worksite.
- Soft Soil Installation: Adaptable for installation on soft surfaces, with safety measures in place for loader and operator coordination.
- Road Entrances & Transitions: Smooth transitions from existing surfaces to mat roads, accommodating turns and access points.
