SignaRoad®
Ground Protection Mats
Medium Duty Matting
Medium-duty composite matting for portable roadways and platforms
SIZE: 6.8 ft x 10 ft x 2.5 in (21 m x 3m x 6.4 cm)
WEIGHT: 496 lbs. ea. (225 kg ea.)
LOAD CAPACITY: 1,950 tons / 400 psi
SHIPPING: 90 mats per truckload

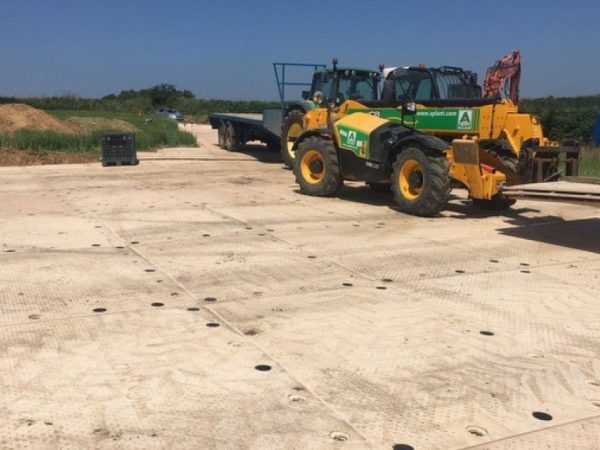

From temporary roadways for remote utility repair projects to pedestrian walkways for concerts and events. SignaRoad® mats provide superior temporary access and ground protection for almost any vehicle, with advanced design features and an easy to use connection system.
SignaRoad® is an eco-friendly composite mat that will not absorb or retain harmful chemicals or invasive species, so it wont transfer contaminants to other job sites or storage facilities, providing superior sustainability.
The World’s Strongest Mat Has Arrived!
General information | |
|---|---|
Module Size | ACTUAL 6.8’L x 10’W x 2.5″ H (68 ft)2 2m x 3m x 6.4cm (6m)2 USABLE PLATFORM 6’L x 9.3’W x 2.5″H (55.8ft)2 1.9m x 2.8m x 6.4cm (5.3m)2 |
Weight | 496 lbs 225 kg |
Color | Beige |
Material | High-Density Polyethylene (HDPE) with special impact modifiers that incorporate UV resistance and anti-static properties |
Weight Loading | 400 psi, depending on subsurface conditions |
Flammability Resistance | UL94HB |
Connection System | Proprietary, self-aligning, composite cam lock system connects the overlapping flange from adjacent mats with a simple twist of a standard hex key |
Freight Info | U.S. standard 48 ft. flatbed truck: 90 mats 40ft ISO shipping container: 90 mats 20ft ISO shipping container: 45 mats U.K. lorry/EU trucks: Up to 120 mats |
